Usage of Rubber floor tiles Safe program:

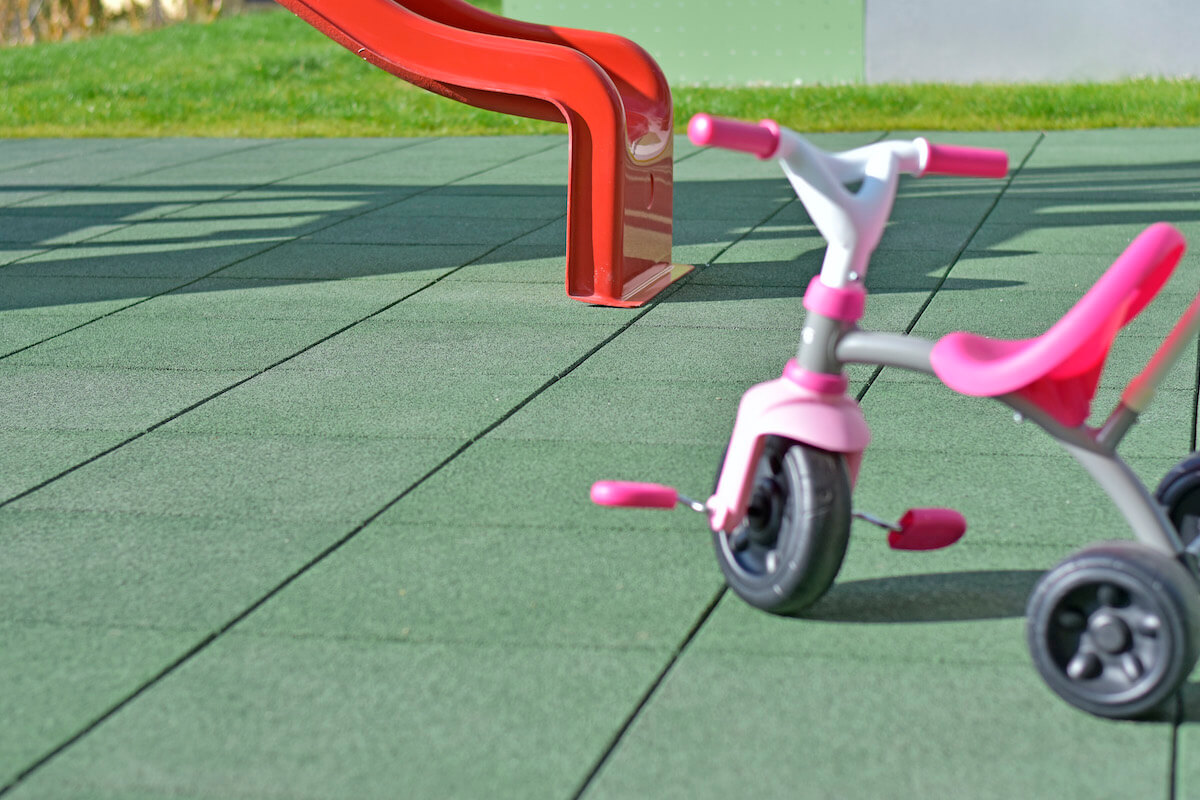

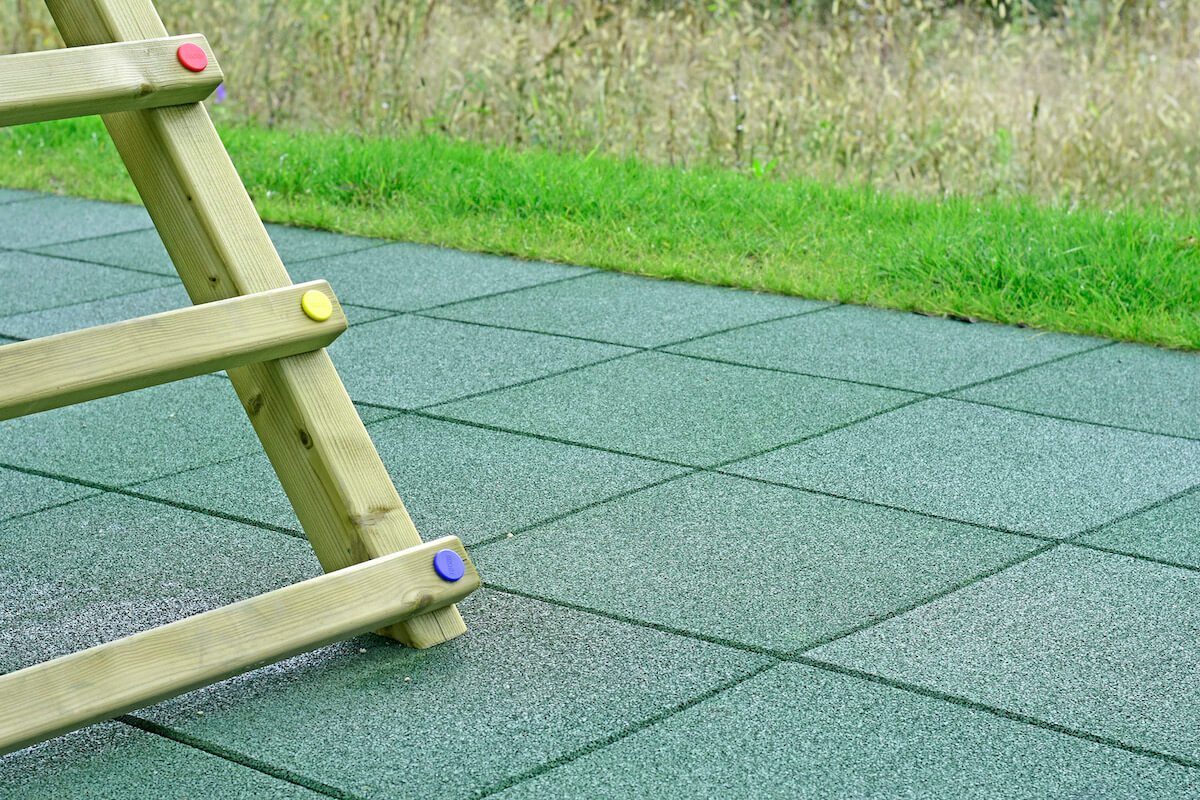

• playgrounds, recreation and relaxation areas, balconies and terraces …
Advantages of Kopur Soft Rubber floor tiles:
• High HIC/thickness ratio (EN-1177)
• Easy installation and maintenance, non-toxic
• Long-time durability
• High level protection
Description of Rubber floor tiles Safe program:
• SBR-rubber granules
• Polyurethane binder
• Smooth and anti-slip upper surface
• Bottom surface designed for protection against falls from heights
• HIC 1000 value: 1 – 2.5 m
Rubber floor tiles Safe program, Classic
| Code number | Thickness
|
Weight
|
Critical Fall Height |
Dimensions
|
Pallet packing
|
Remarks | Color |
|---|---|---|---|---|---|---|---|
| K0180027 | 30 | 4.8 | 1.00 m | 500 x 500 | 50 | SBR, DIN EN 1177 | RED |
| K0180007 | 40 | 5.4 | 1.50 m | 500 x 500 | 40 | SBR, DIN EN 1177 |  |
| K0180008 | 45 | 6.4 | 1.65 m | 500 x 500 | 35 | SBR, DIN EN 1177 | |
| K0180009 | 65 | 7.2 | 2.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
| Ident. | Debelina
|
Teža
|
Kritična višina padca |
Dimenzije
|
Pakiranje na paleto
|
Opombe | Barva |
|---|---|---|---|---|---|---|---|
| K0180029 | 30 | 4.8 | 1.00 m | 500 x 500 | 50 | SBR, DIN EN 1177 | GREEN |
| K0180012 | 40 | 5.4 | 1.50 m | 500 x 500 | 40 | SBR, DIN EN 1177 |  |
| K0180013 | 45 | 6.4 | 1.65 m | 500 x 500 | 35 | SBR, DIN EN 1177 | |
| K0180014 | 65 | 7.2 | 2.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
| Ident. | Debelina
|
Teža
|
Kritična višina padca |
Dimenzije
|
Pakiranje na paleto
|
Opombe | Barva |
|---|---|---|---|---|---|---|---|
| K0180043 | 30 | 4.8 | 1.00 m | 500 x 500 | 50 | SBR, DIN EN 1177 | GREY |
| K0180042 | 40 | 5.4 | 1.50 m | 500 x 500 | 40 | SBR, DIN EN 1177 |  |
| K0180041 | 45 | 6.4 | 1.65 m | 500 x 500 | 35 | SBR, DIN EN 1177 | |
| K0180038 | 65 | 7.2 | 2.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
Program for STABLES
Use:
• horse stalls
• stable walkways
• paddock areas
Advantages of Rubber floor tiles for stables:
• effective water drainage
• very gentle on your horse’s hooves and joints
• easy to keep clean
• robust and durable material upon correct installment
|
Code
|
Thickness
(mm) |
Weight
(kg) |
Dimensions
(mm) |
Pallet packing
(m2) |
Remarks | Colour |
|---|---|---|---|---|---|---|
| K0180027 | 30 | 4,8 | 500 x 500 | 50 | SBR, DIN EN 1177 |  |
| K0180007 | 40 | 5,4 | 500 x 500 | 40 | SBR, DIN EN 1177 |
| Code | Thickness
|
Weight
|
Dimensions
|
Pallet packing
|
Remarks | Colour |
|---|---|---|---|---|---|---|
| K0180029 | 30 | 4,8 | 500 x 500 | 50 | SBR, DIN EN 1177 |  |
| K0180012 | 40 | 5,4 | 500 x 500 | 40 | SBR, DIN EN 1177 |
| Code | Thickness
|
Weight
|
Dimensions
|
Pallet packing
|
Remarks | Colour |
|---|---|---|---|---|---|---|
| K0180043 | 30 | 4,8 | 500 x 500 | 50 | SBR, DIN EN 1177 |  |
| K0180042 | 40 | 5,4 | 500 x 500 | 40 | SBR, DIN EN 1177 |
Check out also KopurSoft Sport Program
Assembly Instructions for Rubber floor tiles Safe program:
Substrate preparation:
• The substrate must be levelled, frost-resistant, sand or concrete-based
• The drainage should be about 30 cm thick, consisting of gravel granulation up to 35 mm, covered with a 5 cm layer of fine gravel 0 – 3.5 mm granulation
• Edgings and kerbs are recommended

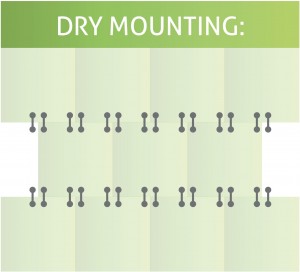

Installation on gravel surfaces:
Rubber floor tiles should be joined with connecting pegs.

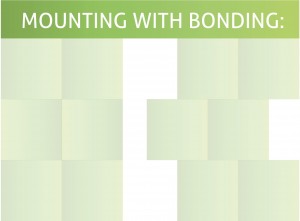

Installation on hard (e.g. concrete, stone) surfaces:
The tiles can be glued to the surface or joined with connecting pegs.
Cleaning:
- a broom, dry vacuum cleaner or damp mopping for daily use
- air blower
- a high-pressure hot water cleaner with a nozzle offset of at least 40 cm (direct jet can damage the plates) the water temperature must not exceed 80 °C
Attention! Do not use solvent-based cleaning materials.
